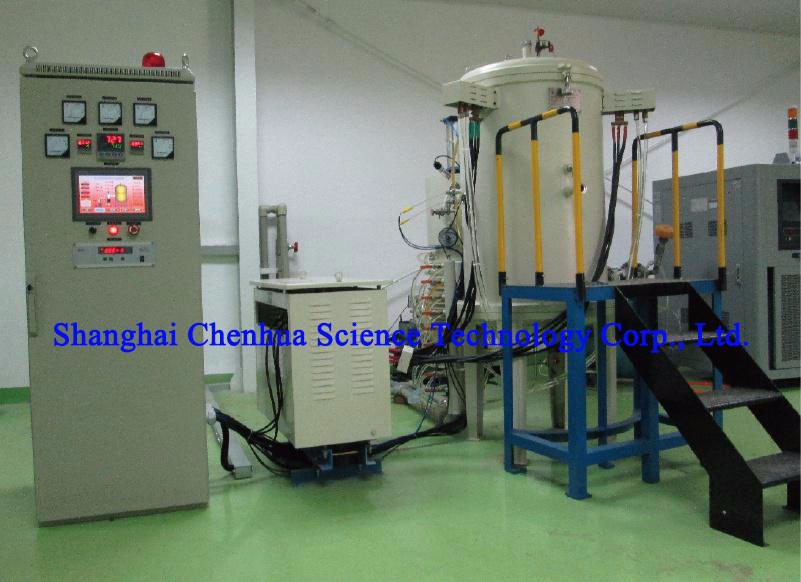

Top loading molybdenum wire sintering furnace
Online inquiry and order
details

Application:

The furnace is vertical or horizontal configuration, mainly applies to metal annealing, brazing, sintering

and degassing treatment under the condition of high vacuum and temperature. Meanwhile, also used to do

the treatment of quartz dehydroxylation.

Features：

The furnace uses molybdenum wire as heating element, consists of furnace shell, heating element, thermal

insulation shield, vacuum system and electrical control system.

1 Double-layer furnace shell with built-in water cooling jacket, stainless steel inner layer with the bright polish,

outer layer is carbon steel  with the rust-proof treatment or stainless steel.

2 Heating element uses high temperature molybdenum wire or belt, surrounded by metallic thermal radiation shield,

easy to clear chamber after the sintering.

3 Control mode of PLC plus touching screen, automatic operation, simple to operate it.

4 Control system owns light-sound alarm and automatic protective function on water failure, overt-temperature

and over-current etc., operating safely and reliably.

Main Technical Parameters:

Model: ZM-70-15

1 Max. temperature:1500℃

2 Power: 70KW

3 Working size: ?400X500mm

4 Final vacuum: 6X10-3Pa

5 Leak rate:3Pa/H

6 Temperature uniformity: ±5oC



— Booking and ordering —
