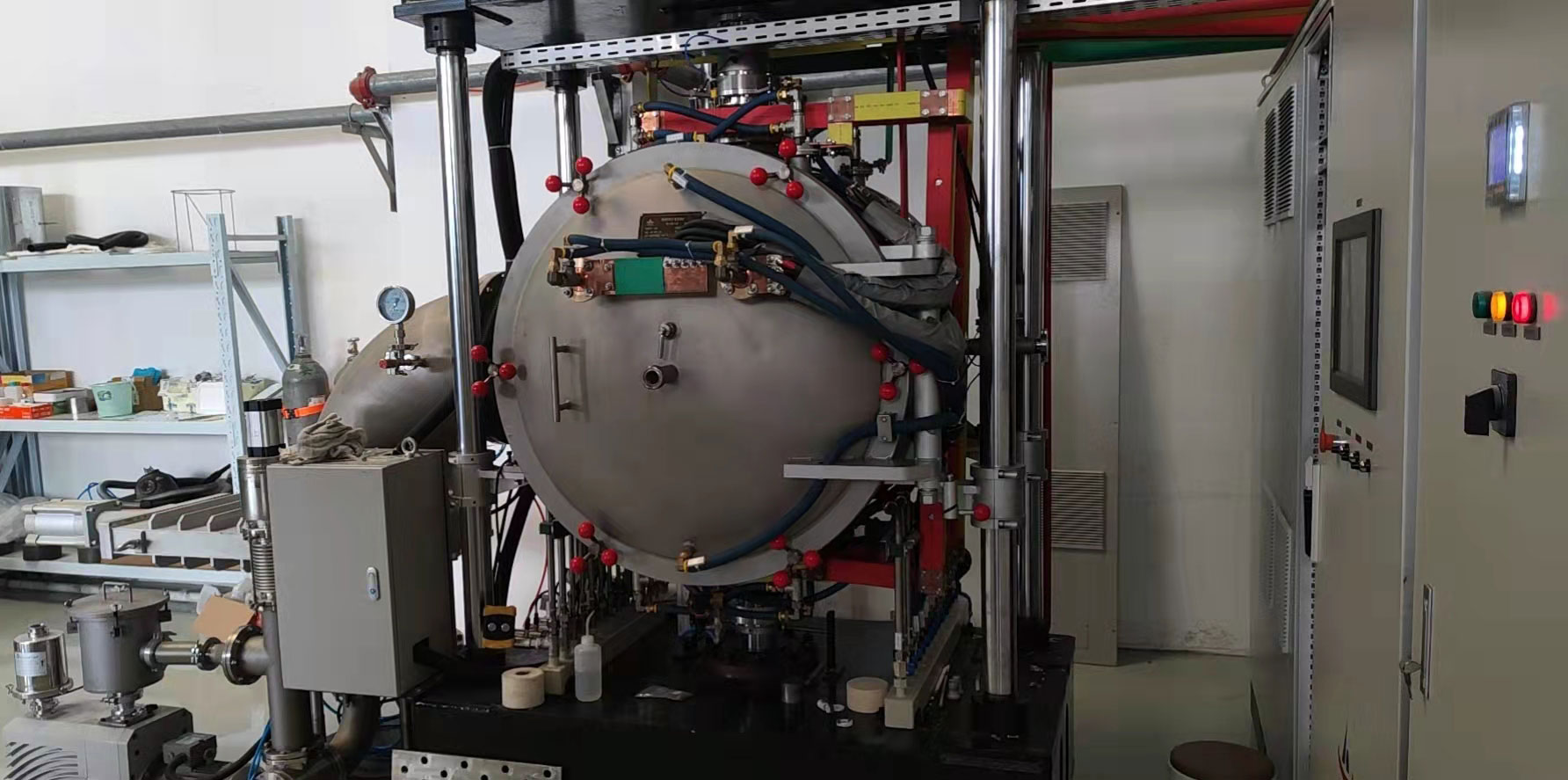

Large Horizontal-type vacuum diffusion welding furnace
Application:
The furnace mainly used for the vacuum diffusion welding of metals and ceramics,
also for the hot press shaping of metallic materials.
Features:
1.Horizontal structure furnace construction, side door suitable for loading and unloading.
2.Vacuum system comprises the direct-driving mechanical pump and turbo molecular pump,
the vacuum is high.
3.Using the metallic heating radiation, thermal insulation is good.
4.Servo pressing system owning the better pressing accuracy.
5.Controlling mode of PLC plus touching screen, automatic operation.
Main technical parameters:
Model:ZM-100-16Y
1.Power: 100Kw
2.Max. temperature:1600℃
3.Final vacuum: 8X10-4Pa.
4.Working zone: 300X300X600mm
5.Max. Pressure:40T
6.Diameter of punch:120mm
7.Displacement of punch:50mm
The furnace can be customized according to your requirements.
